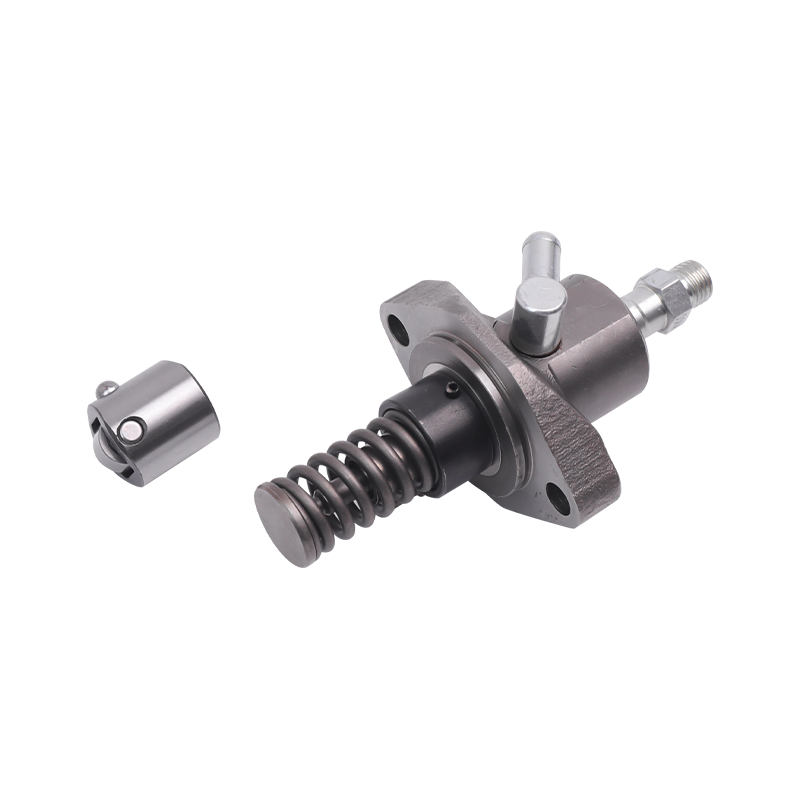

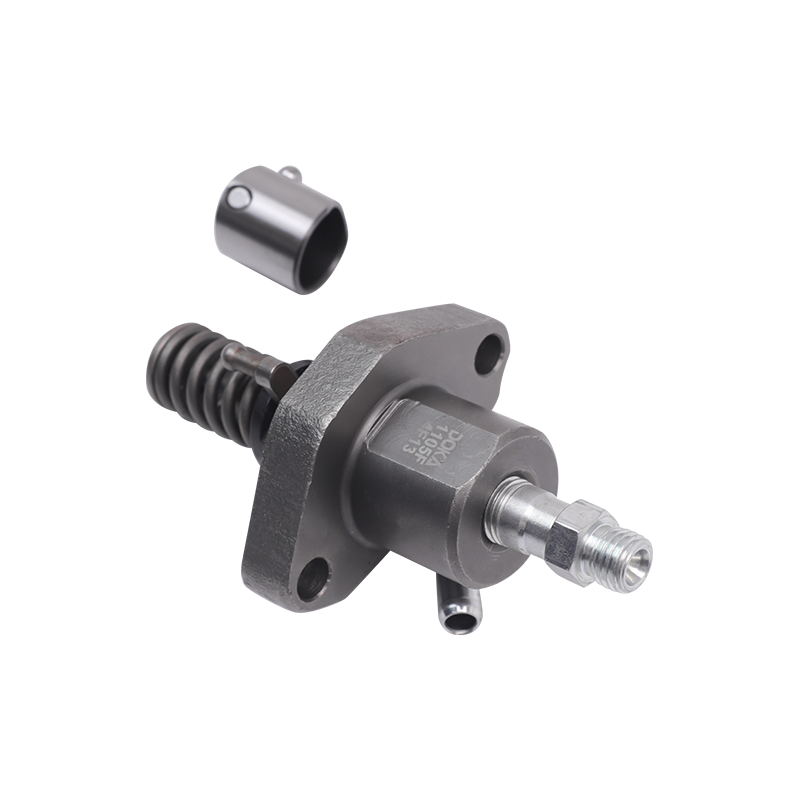

Yanmar Series 1115F Fuel Injection Pump, with roller tappet body and M12x1.5 oil outlet connector, suitable for large-displacement 1115F single-cylinder air-cooled engines

Excellent product with exquisite craftsmanship.

Home / Products / Yan-mar Series / Single Cylinder Diesel Fuel Parts / Yanmar Series 1115F Fuel Injection Pump, with roller tappet body and M12x1.5 oil outlet connector, suitable for large-displacement 1115F single-cylinder air-cooled engines
  • Wuxi DOKA CNC Technology Co., Ltd. Yanmar Series 1115F Fuel Injection Pump, with roller tappet body and M12x1.5 oil outlet connector, suitable for large-displacement 1115F single-cylinder air-cooled engines
  • Wuxi DOKA CNC Technology Co., Ltd. Yanmar Series 1115F Fuel Injection Pump, with roller tappet body and M12x1.5 oil outlet connector, suitable for large-displacement 1115F single-cylinder air-cooled engines
  • Wuxi DOKA CNC Technology Co., Ltd. Yanmar Series 1115F Fuel Injection Pump, with roller tappet body and M12x1.5 oil outlet connector, suitable for large-displacement 1115F single-cylinder air-cooled engines
  • Yanmar Series 1115F Fuel Injection Pump, with roller tappet body and M12x1.5 oil outlet connector, suitable for large-displacement 1115F single-cylinder air-cooled engines
  • Yanmar Series 1115F Fuel Injection Pump, with roller tappet body and M12x1.5 oil outlet connector, suitable for large-displacement 1115F single-cylinder air-cooled engines
  • Yanmar Series 1115F Fuel Injection Pump, with roller tappet body and M12x1.5 oil outlet connector, suitable for large-displacement 1115F single-cylinder air-cooled engines

Yanmar Series 1115F Fuel Injection Pump, with roller tappet body and M12x1.5 oil outlet connector, suitable for large-displacement 1115F single-cylinder air-cooled engines

The 1115F fuel injection pump is specifically designed for 1115 single-cylinder diesel engines with large displacement (836 ml) and an 18:1 compression ratio. Operating at a rated speed of 3000 RPM, the pump delivers a stable injection pressure of approximately 40–50 MPa, ensuring complete fuel atomization for reliable 13.5 kW power output.

Built with a 9.5 mm non-top-clearance plunger and a precision plunger-barrel assembly, the pump allows for fine control over fuel delivery. The strengthened delivery valve and roller tappet structure reduce mechanical wear, enhance durability, and ensure responsive fuel delivery under heavy load conditions. High-strength alloy construction provides resilience for extended high-duty operation.

The pump features an M12x1.5 threaded fuel outlet and an 8 mm rubber hose inlet, enabling secure and easy system integration. Compatible with large 7.5L fuel tank systems, the 1115F injection pump offers continuous and stable fuel supply, making it ideal for high-power agricultural machinery, stationary industrial engines, and large single-cylinder diesel platforms.

CONTACT US
01Description 02Inquiry
Technical parameter
Engine Type 1115
Plunger Dia(mm) 9.5
Plunger None  top dlearance
Outlet M12×1.5
Inlet Nprie
Tappet Roler tappet
Pump Pressure(Mpa) 40-50
Fueling Timing（°） 20
